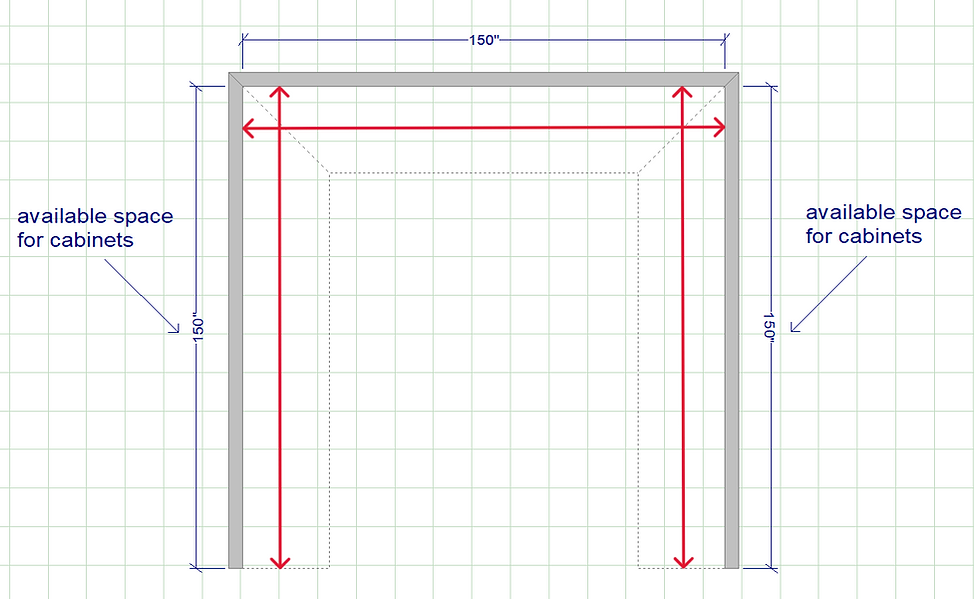

Step 1: Draw each wall to show the maximum available space for cabinets.
Step 2: Locate the window by measuring the distance from its edges to both ends of the wall
Step 3: Locate all appliances by measuring from either the edge (red arrow) or center (green arrow) of each appliance to the end of the wall.
Step 4: Select height of uppers
-30" uppers will require a minimum of 84" ceiling height
-36" uppers will require a minimum of 90" ceiling height
-42" uppers will require a minimum of 96" ceiling height
